Portable Thawv Tsev

Qhov zoo





Portable thawv tsev muaj hluav taws kub-resistant, muab qhov chaw nyob nyab xeeb. Lawv yog tsim los rau kev yooj yim installation, muab kev yooj yim thiab efficiency. Nrog lawv cov kev tsim kho lub teeb, lawv yog cov portable thiab cov neeg siv-phooj ywg, tso cai rau kev yoog raws thiab hloov pauv hauv ntau qhov chaw. Cov tsev no siv cov thawv ntim khoom rov qab, txo cov khib nyiab thiab txhawb kev ruaj khov. Lawv muab cov kev daws teeb meem ntau yam thiab pheej yig hauv vaj tsev nrog cov qauv tsim thiab kev ua haujlwm zoo, ua rau lawv muaj kev xaiv nrov rau cov neeg nrhiav qhov chaw nyob thiab ib puag ncig-conscious.





Specification



Specification	Kev piav qhia
Khoom siv hauv tsev	Repurposed shipping ntim
Hluav taws kub tsis kam	Muaj hluav taws kub-resistant
Kev teeb tsa	Ib qho yooj yim thiab ceev installation
Portability	Lub teeb yuag thiab yooj yim thauj
Durability	Weatherproof thiab kav ntev
Customization Options	Ntau qhov ntau thiab tsawg, layouts, thiab tiav muaj
Sustainability	Txhawb kev rov ua dua tshiab thiab txo cov khoom pov tseg
Zog Efficiency	Insulated phab ntsa kom txhim kho lub zog efficiency
Amenities	Muaj peev xwm suav nrog chav ua noj, chav dej, thiab chaw nyob
Kev ruaj ntseg	Lockable qhov rooj thiab qhov rais kom txhim khu kev ruaj ntseg
Nqi	Nqis piv rau cov vaj tsev ib txwm muaj
Ntau yam	Haum rau ntau qhov chaw thiab lub hom phiaj



Cheebtsam & Khoom Option



Chassis	Khawm thaiv	4 pcs - 160x160x160mm, t=4.5mm, Q235, galvanized
	Main beam	4 pcs - 160mm web qhov siab, t=2.3/2.5mm, Q235, galvanized
	Joist	9 pcs - RHS 80x40, t=1.2mm, Q235, galvanized
	Kem	4 pcs - 160x160x58mm, t=2.3/2.5mm, Q235, galvanized
	pleev xim rau	los yog customized xim
	Pem teb lawj	18 hli thickness MGO board
	Pem teb	1.6mm thickness vinyl flooring ntawv
Phab ntsa system	Sandwich vaj huam sib luag	1. Loj: 950/1150 x 50/75mm 2. Rwb thaiv tsev: EPS ceev 8g / m³, pob zeb wool ceev 60g / m³, PU ntom 40g / m³ 3. Ob sab yog 0.3 ~ 0.5mm dawb xim daim ntawv cog lus
	Qhov rai & Qhov Rooj	950/1150x1200mm Steel qhov rooj Steel qhov rooj alu. zawv zawg qhov rooj PVC zawv zawg qhov rais 925x2090m 830x2080m customized loj
	Trim	PVC trim, suav nrog skirting, ces kaum, sab saum toj
Integrated Roof Plate	Khawm thaiv	4 pcs - 160x160x175mm, t=4.5mm, Q235, galvanized
	Main beam	4 pcs - 160mm web qhov siab, t=2.3/2.5mm, Q235, galvanized
	Joist	4 pcs - RHS 80x40, t=1.2mm, Q235, galvanized
	Rwb thaiv tsev	50 hli fiber iav ntaub plaub, 12kg / m³
	Daim ntawv ru tsev	0.4mm dawb xim daim ntawv cog lus
	Daim ntawv qab nthab	0.3mm dawb xim daim ntawv cog lus
	pleev xim rau	los yog customized xim

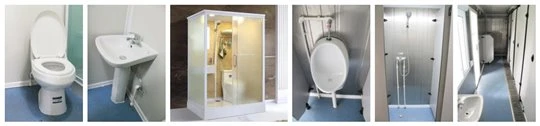

Cov khoom siv huv huv	Toilet Wash basin Da Dej Chav Dej Dej Da Dej Lub taub hau Muab faib phab ntsa vaj huam sib luag
Hluav taws xob qhov system (CE, Australia, Asmeskas)	Xws li lub thawv xa khoom, hloov pauv, lub qhov (socket), cable, lub teeb, cua ntxuam.
Ntau txoj kev xaiv	Ru tsev & Stair & handrail & taug kev



Txoj Kev Npaj thiab Nqe Rau 3x6m Detachable Container Unit





ID	Standard unit	ID	chav da dej
Loj	W3000 x L5950 x H2815 mm	Loj	W3000 x L5950 x H2815 mm
Thawv thaiv	Chassis plus kem plus Roof Plate	Thawv thaiv	Chassis plus kem plus Roof Plate
Phab ntsa system	16 - 950 x 50mm EPS sandwich vaj huam sib luag	Phab ntsa system	16 - 950 x 50mm EPS sandwich vaj huam sib luag
Qhov rai	1 - 925 x 1200mm PVC qhov rais	Qhov rai	1 - 925 x 1200mm PVC qhov rais
Qhov rooj	1 - 925 x 2090mm steel qhov rooj	Qhov rooj	1 - 925 x 2090mm steel qhov rooj
Hluav taws xob qhov system	2 x teeb, 1 x hloov, 3 x sockets, DB, cable	Hluav taws xob qhov system	3 x lub teeb, 2 x keyboards, 4 x qhov (socket), 1 x tso kiv cua, DB, cable
Kev huv huv Khoom siv	tsis muaj	Kev huv huv Khoom siv	1 x Integrated chav da dej
Chaw thau khoom Qty.	17 units - 1 x 40'HQ 8 units - 1 x 20'GP	Chaw thau khoom Qty.	12 units - 1 x 40'HQ 6 units - 1 x 20'GP
EXW nqi	2190 USD ua	EXW nqi	3,350 USD



Kev tsim khoom & ntim & Loading





Cov kauj ruam installation





FAQ



Q: Portable thawv tsev yog dab tsi? A: Portable thawv tsev yog cov tsev me me uas tsim los ntawm cov thawv ntim khoom siv rov qab, tsim los muab cov kev daws teeb meem vaj tsev uas tuaj yeem nqa tau thiab hloov tau.

Q: Puas yog lub tsev ntim khoom portable muaj kev nyab xeeb? A: Yog, lub tsev ntim khoom nqa tau tsim nrog kev nyab xeeb hauv siab. Lawv yog cov hluav taws kub-resistant thiab muaj peev xwm nruab nrog kev ruaj ntseg nta xws li lockable qhov rooj thiab qhov rais.

Q: Nws yooj yim npaum li cas rau nruab lub thawv ntim khoom hauv tsev? A: Portable thawv tsev yog tsim los rau kev yooj yim installation. Lawv tuaj yeem xa mus rau qhov chaw xav tau thiab teeb tsa sai, txuag lub sijhawm thiab kev siv zog piv rau cov qauv kev tsim kho ib txwm muaj.

Q: Kuv puas tuaj yeem kho qhov tsim ntawm lub thawv ntim khoom hauv tsev? A: Yog, portable thawv tsev muaj kev xaiv customization. Koj tuaj yeem xaiv los ntawm ntau qhov ntau thiab tsawg, layouts, thiab tiav kom haum rau koj nyiam thiab xav tau.

Q: Puas yog lub tsev ntim khoom siv tau ruaj khov? A: Yog, cov tsev ntim khoom nqa tau tsim los ua kom ruaj khov thiab tsis muaj huab cua. Lawv tau tsim los siv cov khoom siv ruaj khov thiab tuaj yeem tiv taus cov huab cua sib txawv.

Q: Puas yog lub tsev ntim khoom nqa tau lub zog txuag? A: Portable thawv tsev tuaj yeem ua rau lub zog txuag tau los ntawm kev sib xyaw cov rwb thaiv tsev hauv cov phab ntsa. Qhov no yuav pab txhim kho kev ua haujlwm thermal thiab txo kev siv hluav taws xob.

Q: Kuv puas tuaj yeem ntxiv cov khoom siv xws li chav ua noj lossis chav dej rau lub thawv ntim khoom hauv tsev? A: Yog lawm! Portable thawv tsev tuaj yeem hloov kho kom muaj cov khoom siv xws li chav ua noj, chav dej, thiab chaw nyob. Lawv tuaj yeem nruab nrog cov kav dej tsim nyog thiab cov tshuab hluav taws xob.

Q: Puas yog lub tsev ntim khoom portable yog ib puag ncig tus phooj ywg? A: Yog, portable thawv tsev txhawb kev sustainability. Los ntawm repurposing shipping ntim, lawv pab txhawb rau kev siv zog rov ua dua thiab txo cov khoom pov tseg.

Q: Puas yog lub tsev ntim khoom nqa tau tsim nyog rau kev nyob mus ntev? A: Portable thawv tsev tuaj yeem tsim rau kev nyob mus ntev. Lawv muab cov kev daws teeb meem rau vaj tse uas siv tau thiab muaj txiaj ntsig zoo uas tuaj yeem hloov kho kom tau raws li cov kev xav tau ntawm tib neeg lossis tsev neeg.

Q: Ntau npaum li cas portable thawv tsev nqi? A: Tus nqi ntawm lub tsev ntim khoom tuaj yeem sib txawv nyob ntawm seb qhov loj me, kev xaiv xaiv, thiab cov yam ntxwv ntxiv. Txawm li cas los xij, lawv feem ntau pheej yig dua piv rau cov kev xaiv vaj tsev ib txwm muaj.



Cim npe nrov: Tuam Tshoj portable thawv tsev manufacturers, lwm tus neeg, Hoobkas
